Custom Signage Backlit Room Number Panels

Custom Signage Backlit Room Number Panels

• MINIMUM ORDER QTY OF 15 UNITS.  If you need less than 15, please contact us.  We may be able to make them, but at a higher cost
• Room Number Signage, Designed for larger-scale needs (hotels, apartments, condos, office buildings, etc.)

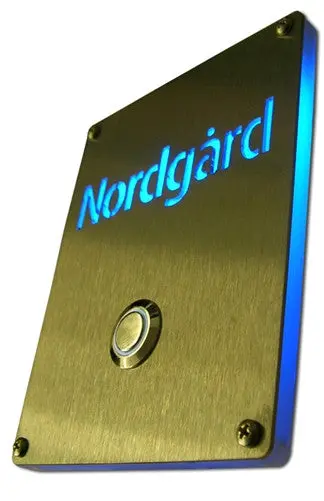

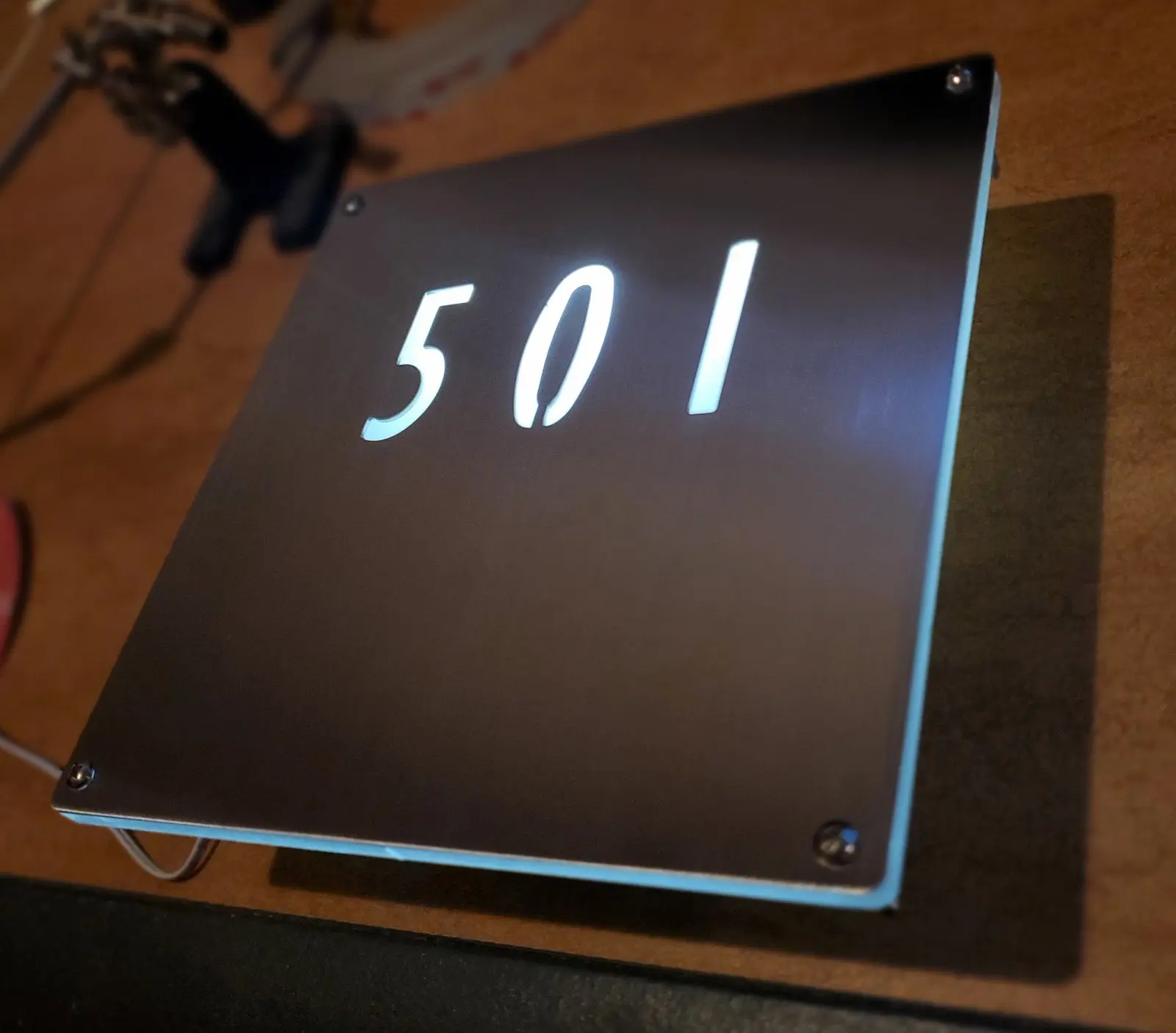

• Made of solid 16 gauge stainless Steel. Backlit panel is made of a frosted acrylic, illuminated with LEDs.
• Available as a sign only, or with optional Doorbell Button, and/or potentially adding Braille (Contact us if you need Braille, as it may not be something we can add but we will try).
• Doorbell styles can be seen in the product images above.  Type in the style of doorbell button desired in the Custom Notes text box above.
• Backlit Panels are illuminated by low voltage LEDs, using very little electricity and have a lifespan of approx. 11 years.
• For large orders (100 or more pieces): Plaques can be completely custom built to your needs and specifications. Contact Us for custom orders.
• 1 Year warranty.

Specifications Custom Signage Backlit Room Number Panels

• View NP-RECTANGLE Data Sheet.
• View NP-ROUND Data Sheet.
• Standard size:
• NP-CUSTOM- Custom size/shape, costs vary.
• NP-RECTANGLE - 3.5" Wide, 4.5" High.
• NP-ROUND - 5" Diameter.
• Stainless Steel Faceplate: 16 gauge. Backlit Illumination Panel: 1/4" to 1/2" thick (can vary based on need).
• Some space is required behind the panel for the optional Illumination Panel's wiring and the doorbell button to fit (minimum 0.75" diameter hole by 1.5" deep for LED doorbell, 3/4" deep for non-lit doorbell).
• Power Required (For Illumination and/or Doorbell Button options): 8-16 Volts AC or 6-12 Volts DC.
• LED Power Consumption:
• NP-R (Rectangle)- Backlit Panel: 2.4 Watts.
• NP-RND (Round)- Backlit Panel: 4.8 Watts.
• LED Doorbell Button: 0.32 Watts.
